Assembly: Propeller (Moster Propellers)

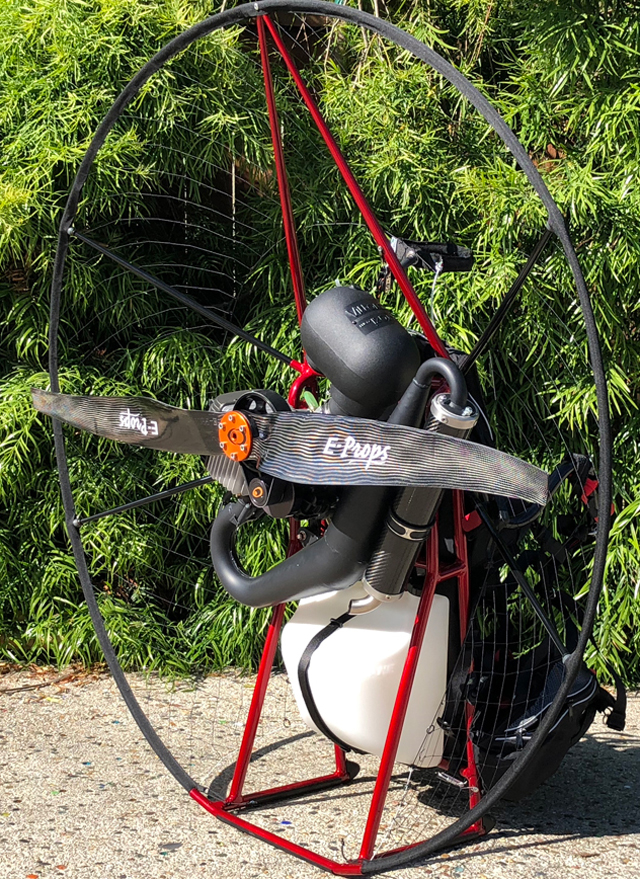

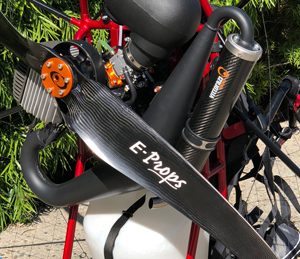

Install the Propeller with the supplied Propeller Plate and Bolts.

Put the Bolts into the Propeller Plate, then through the Propeller, then slide the propeller onto the centering ring of the Hub and find the bolt position so that they may be easily engaged by hand.

Check now that the Propeller is installed correctly - that the Leading Edge of the Propeller is closer to the Harness side of the Paramotor. This may seem strange, but we have had calls from folks that say they have no power when launching, and they have had their Propellers on backwards!

Tighten one bolt gently, just until there is a small amount of pressure. Cross-tighten the opposite bolt, then use the same cross-tightening technique for the other four bolts.

Now you can cross-tighten the six Propeller Bolts to about the amount of pressure your pinky can pull against a 6 inch wrench.

Install a good Propeller Cover for protection whenever you are transporting your Miniplane Moster Paramotor.

The next step in the assembly is the Feet & Mirror.
