SupAir Evo Harness Attachment

The SupAir Evo PPG Harness can be attached in two different ways tothe Miniplane Frame. The first is to use the straps and buckles included with the harness from SupAir.

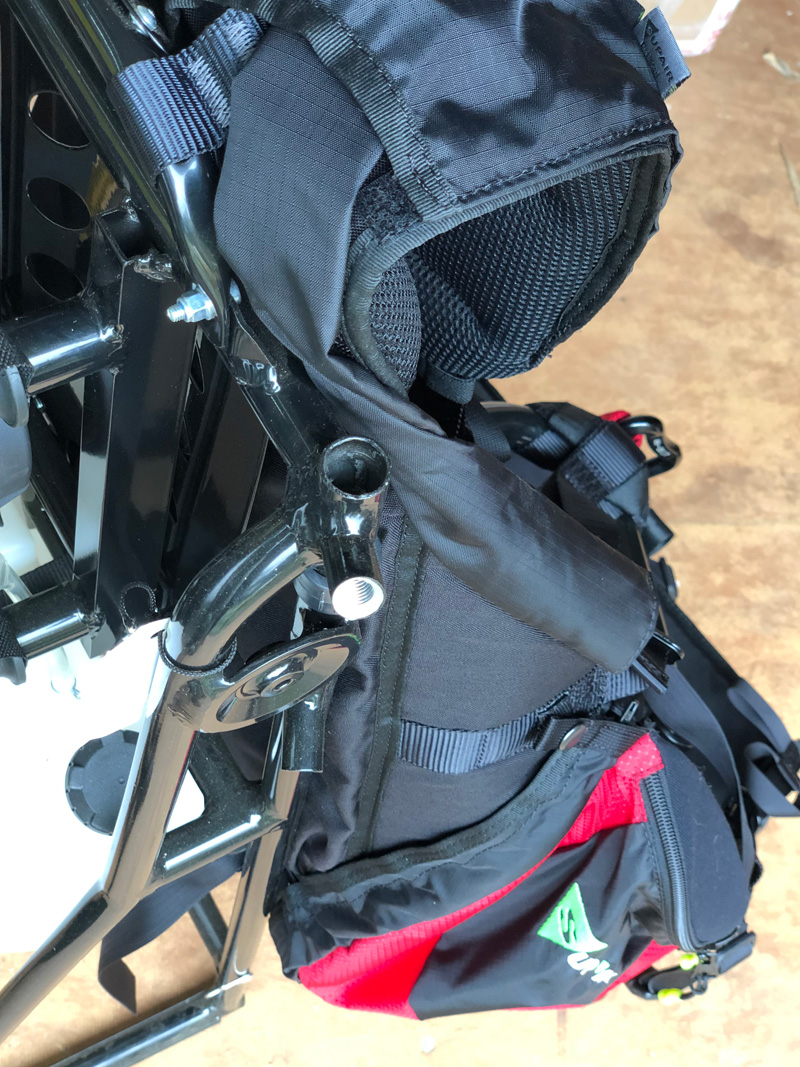

First, position the harness on the back of the paramotor as pictured below. You will find this easier to do if you have not attached the Cage to the Frame, and the ABM Arms to the Frame. Do this upper strap attachment first, and it will be much easier!

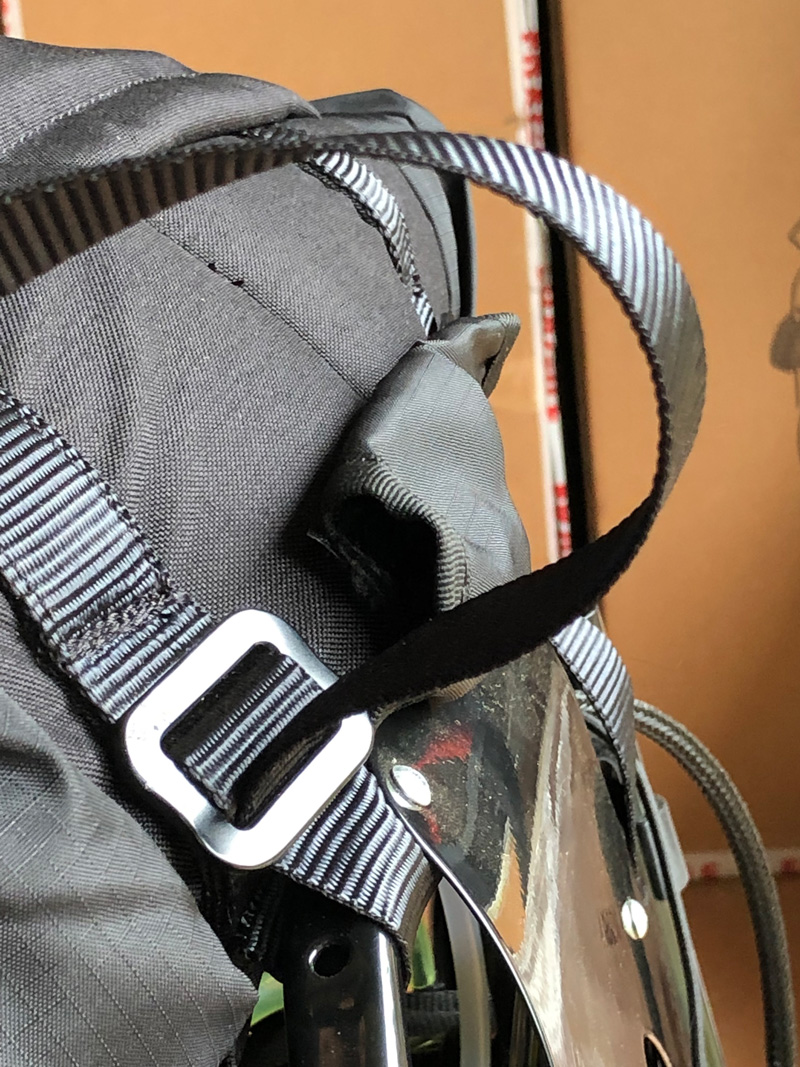

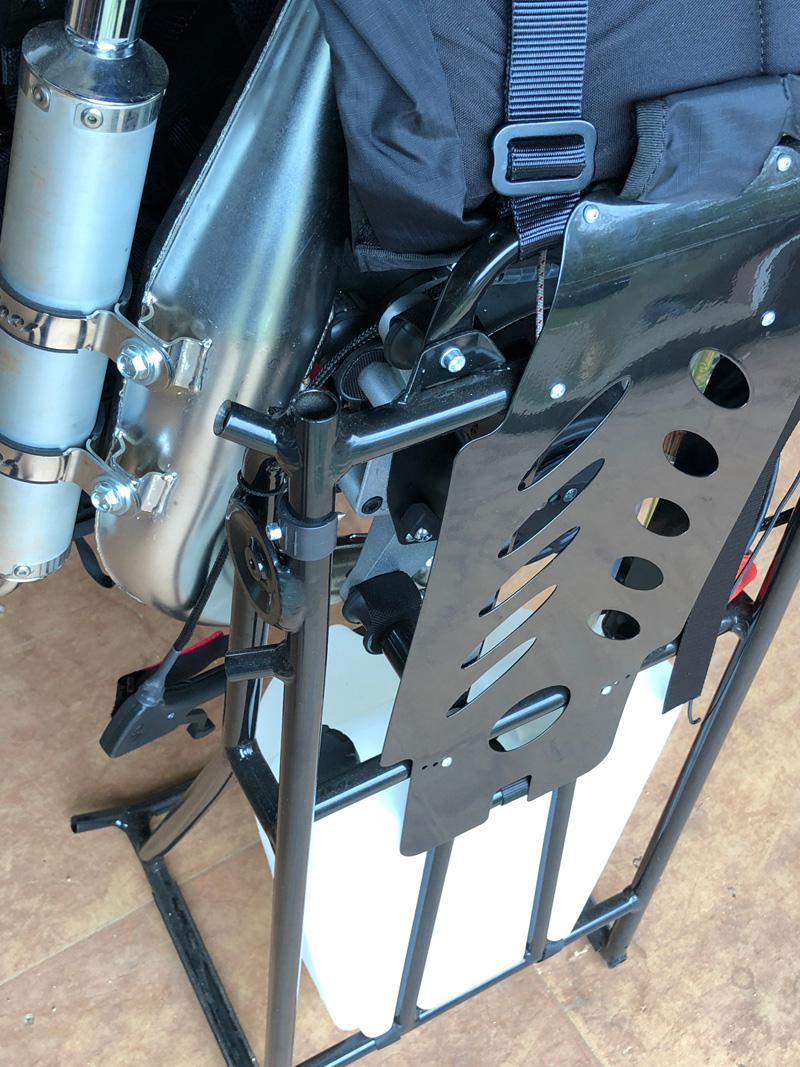

Run the end of the long strap attached to the EVO harness through the gap in the Upper Frame Extension T/A1 as shown in the photo.

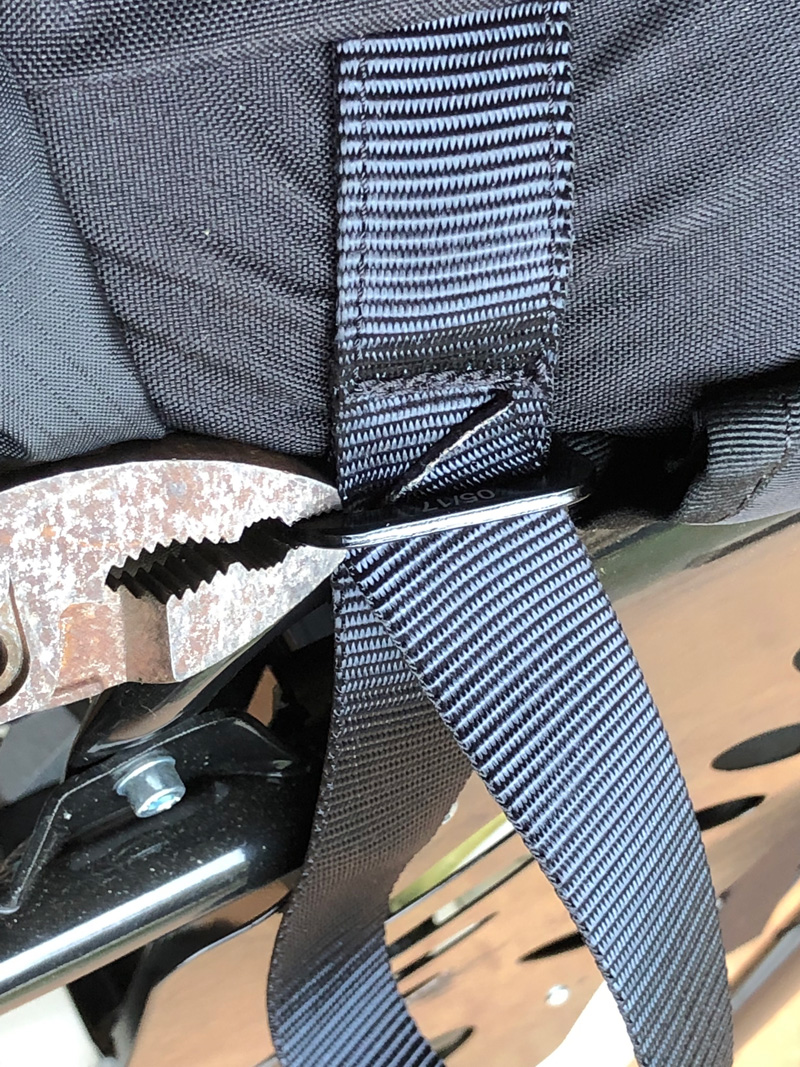

Using a pair of pliers, grip the edge of the Ladder Buckle on the harness and twist the buckle to make inserting the strap easier:

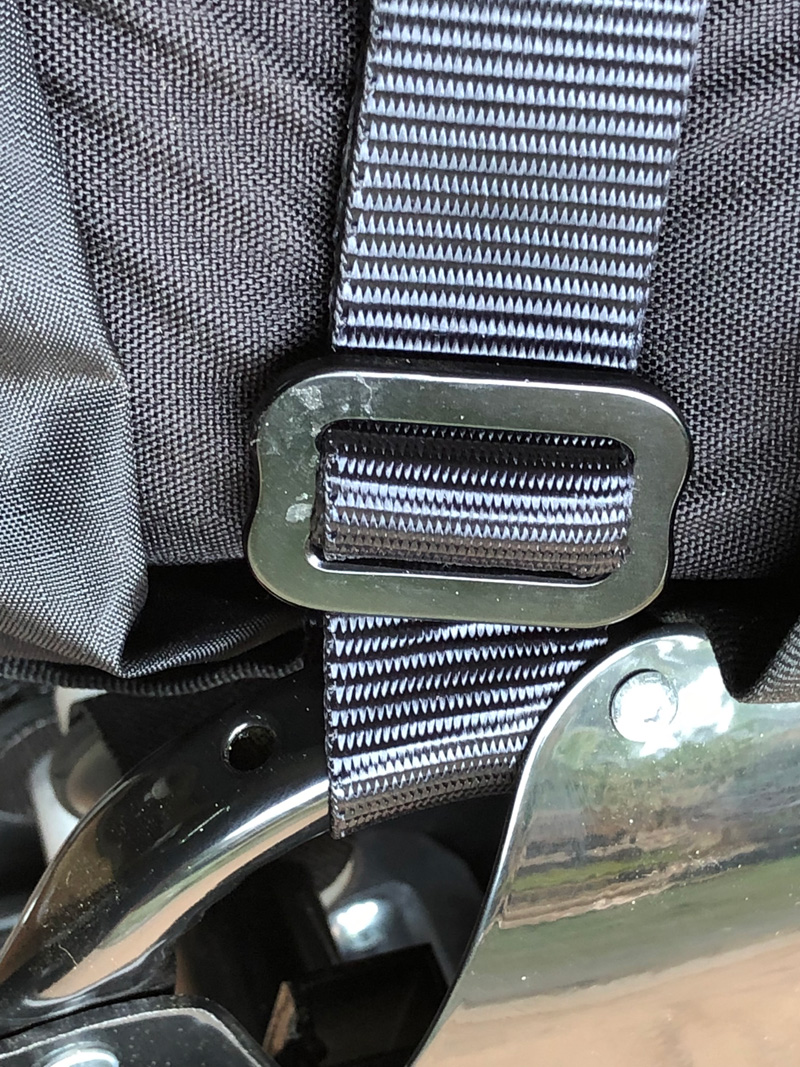

Pull the strap all the way tight against the harness as shown:

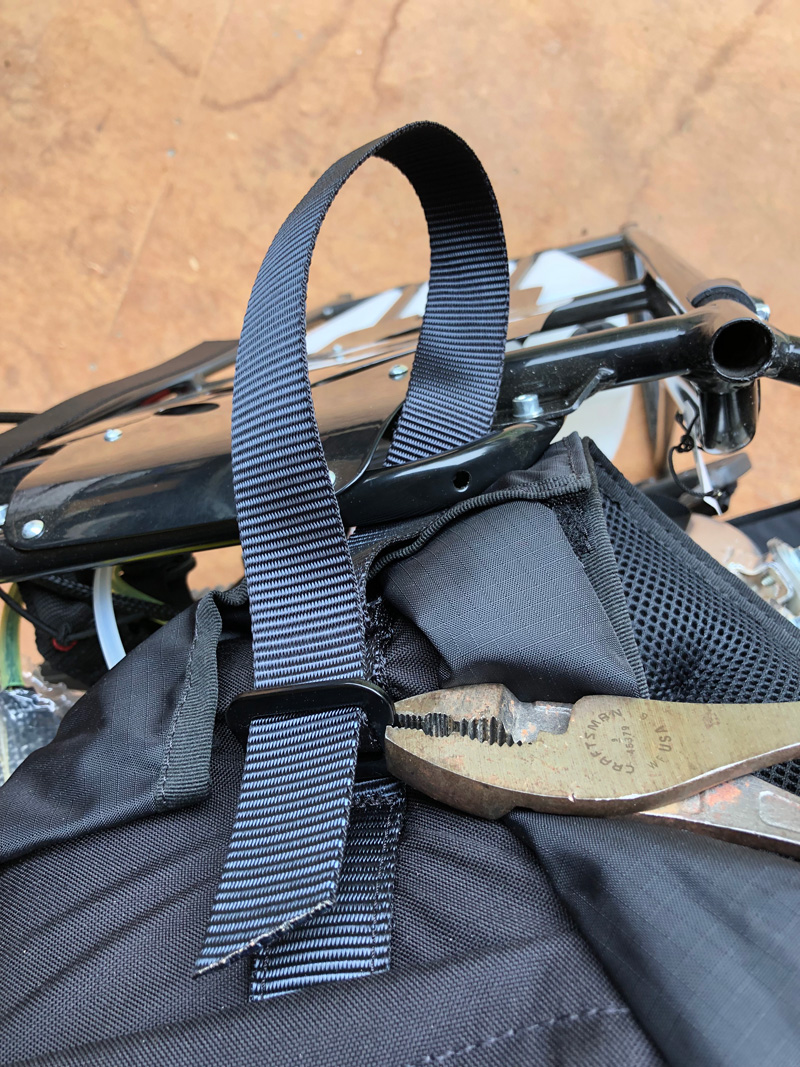

Using the pliers again, twist the Ladder Buckle to make the insertion into the second slot easier as shown in this picture:

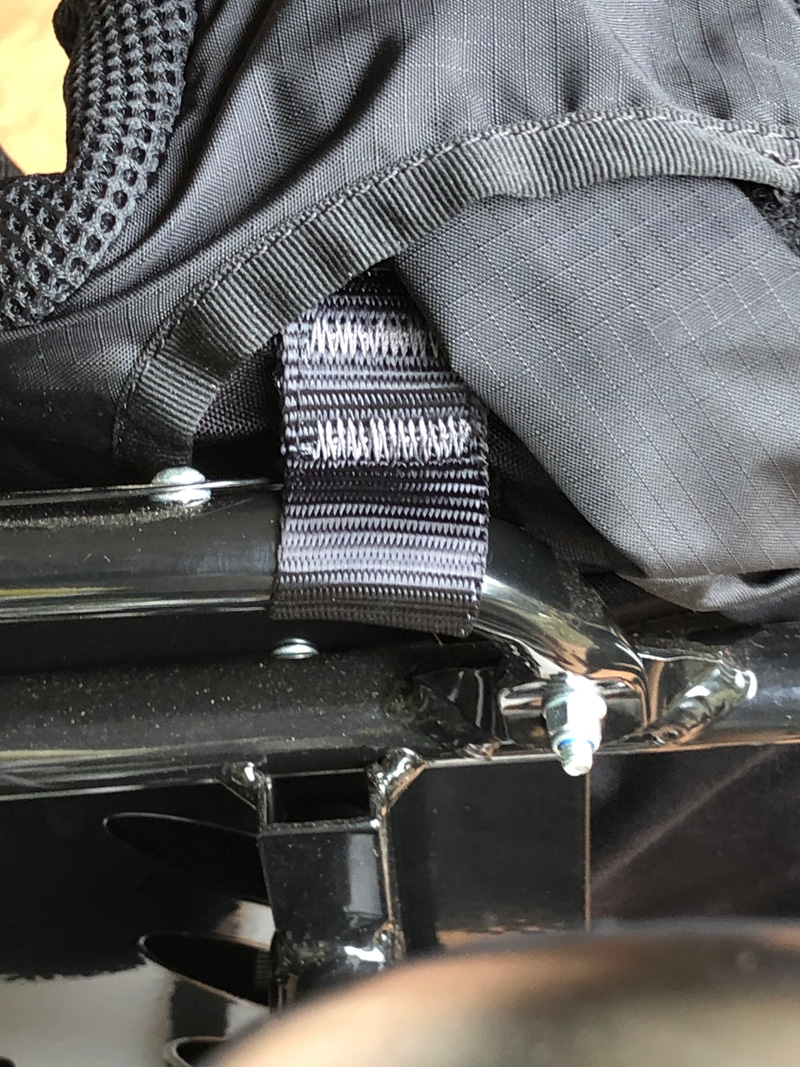

Pull the strap tight as shown:

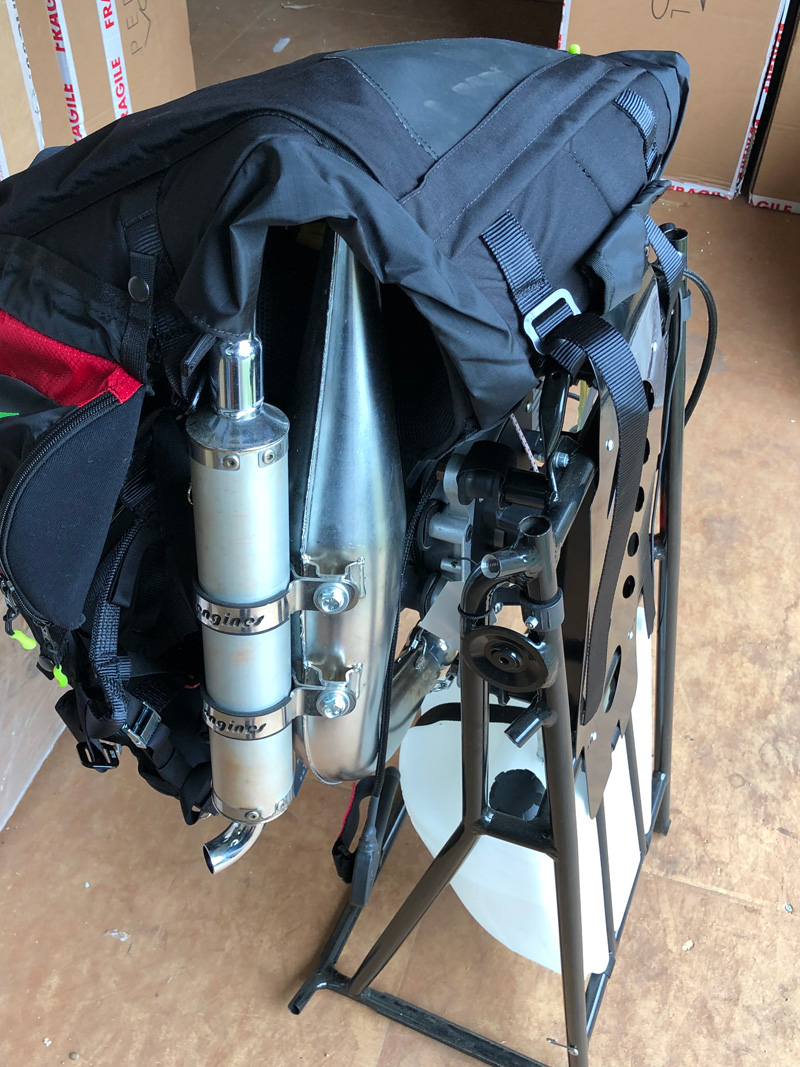

Repeat the process for the other side, then flip the harness over the Frame into the proper position:
