Top 80 Engine: Cylinder Parts
(Expanded Diagram) |
|
|
Top 80 Cylinder/Piston/Head/Plug Full Kit (new style) |
|
- New Design Includes:
- Cylinder
- Piston
- Piston Bearing
- Wrist Pin
- Circlips
- Cylinder Gaskets
- Head O Ring
- Spark Plug NGK CR9EB
- No Spark Plug Washer Needed
- Price: $329.00
|
Top 80 Cylinder Kit (new style) M13 |
|
M13 Kit Includes:
- New Cylinder
- Piston
- Wrist Pin
- Piston Ring
- Circlips
- Cylinder Gaskets
- Head O Ring
- Price: $298.00
|
Top 80 Cylinder Head (new style) M13/5 |
For use with NEW Cylinder
Please note: Old Head is not available any more. If you have a head that needs replacing, you will also need to get M13 Cylinder Kit (above) and Spark Plug CR9EB. Better yet is the Kit M13/5K above. |
- New Design
- No Spark Plug Washer Needed
- For NGK CR9EB
- For use with the NEW Cylinder ONLY!
- Price: $74.00
|
Top 80 Piston Kit M13/2 (22a) |
See Diagram
Unless the cylinder has been modified:
(re-bored), size A should be selected.
|
- M13/2 Piston
- Piston Ring
- Wrist Pin
- Circlips
- Note: Pistons are sized A, B, C, D, F, G H; incrementally oversized.
- Please indicate size desired when ordering
- Price: 110.00
|

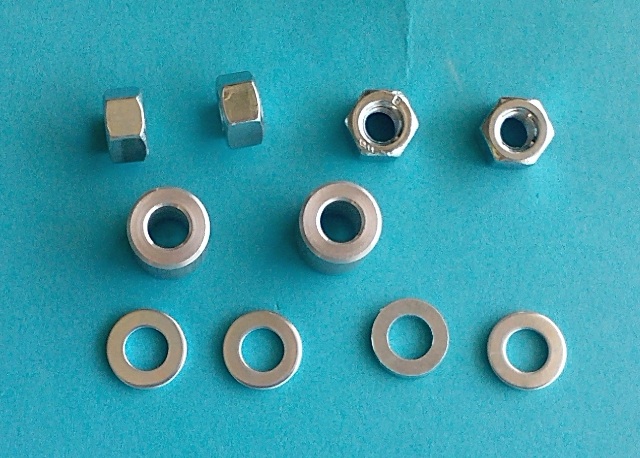

Top 80 Cylinder Head Nuts, Washers & Spacers Kit M13/8 (6a, 7a, 8a, 9a) |
|
|
Top 80 Piston Ring M13/3 (20a) |
|
|

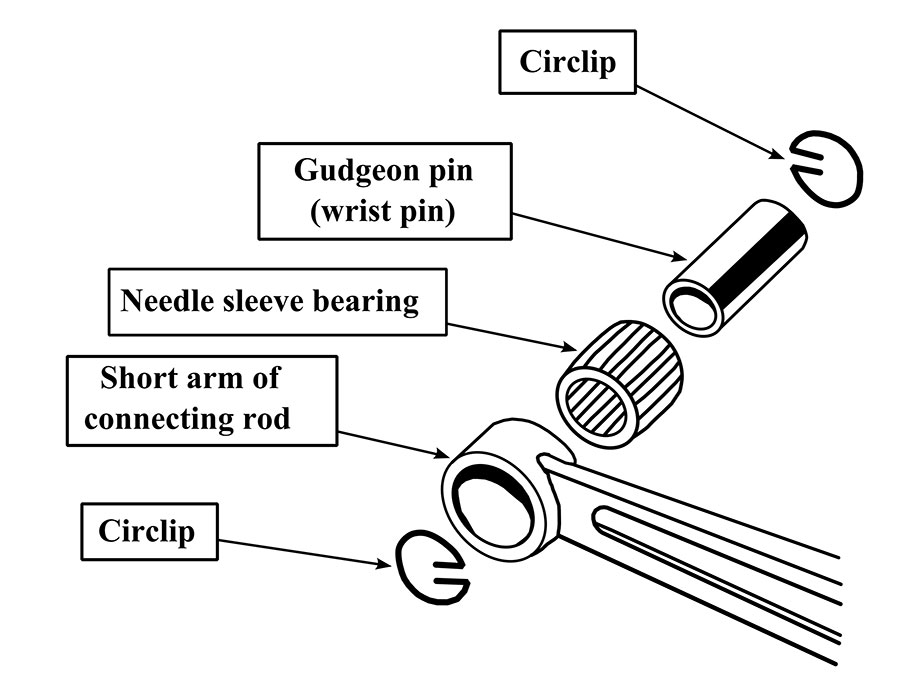

Top 80 Piston Bearing M13/4 (19a) |
|
|
Top 80 Piston Rod "Circlips" Springs M13/4A (18a) |
|
|
Top 80 Head O Ring M13/5A (11a) |
|
|

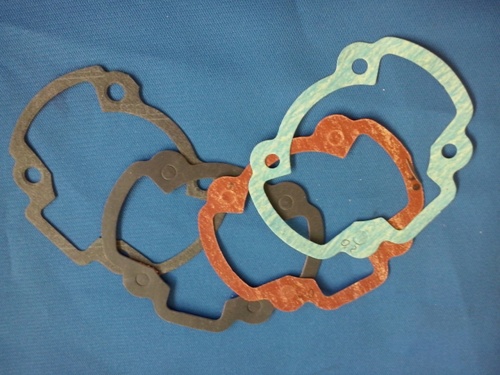

Top 80 Cylinder Gasket Kit M13/6 (15a) |
|
- Kit includes:
0.20mm
0.30mm
0.40mm
0.50mm
0.60mm
- Read This
- Price: $10.00
|
Top 80 Centering Pins, Cylinder 536-316 (12a) |
|
- For the Cylinder
- Price: $5.00
|
Top 80 Cylinder Studs M13/7 (16a) |
|
|
Top 80 Crank Shaft M14 (33a) |
|
|

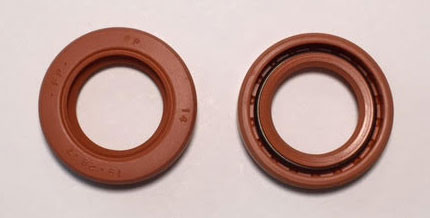

Crankcase Seals M14/2 (pair) (31a) |
|
- Price: $23.00
- For Motors before Feb, 2014
- High Speed Rubber
- Size: 18x28x7 mm
|

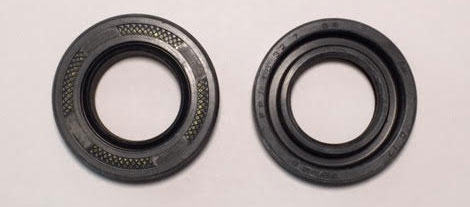

Crankcase Seals M14/2F (pair) (31a) |
|
- Price: $27.00
- For Motors after Feb, 2014
- H.S. Rubber with Teflon Tips
- New Size: 18x32x7 mm
|
Top 80 Crank Shaft Bearings, set M14/1 (32a) |
|
|

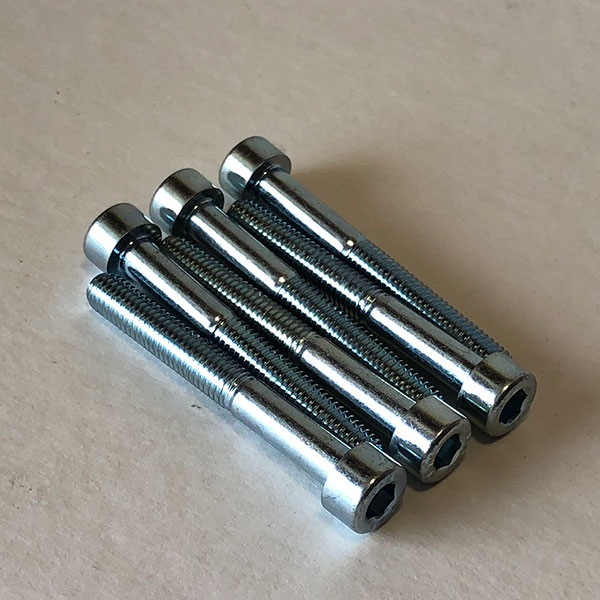

Crank Case Bolts M5x40mm, set of 6 (29a) |
|
- Set of Six Bolts
- M5x40mm
- Price: $16.00
|
