Vittorazi Moster Plus Parts - Pull Start Group

Roll over top images to display them below.
Click to go to that group's detail page.

Image 0
Thermal Group
Image 1
Starter Group
Image 2
Redrive & Carb Group
Image 3
Exhaust Group

Online ordering coming soon!

For now, compile list of part numbers needed then email us at info@miniplane-usa.com

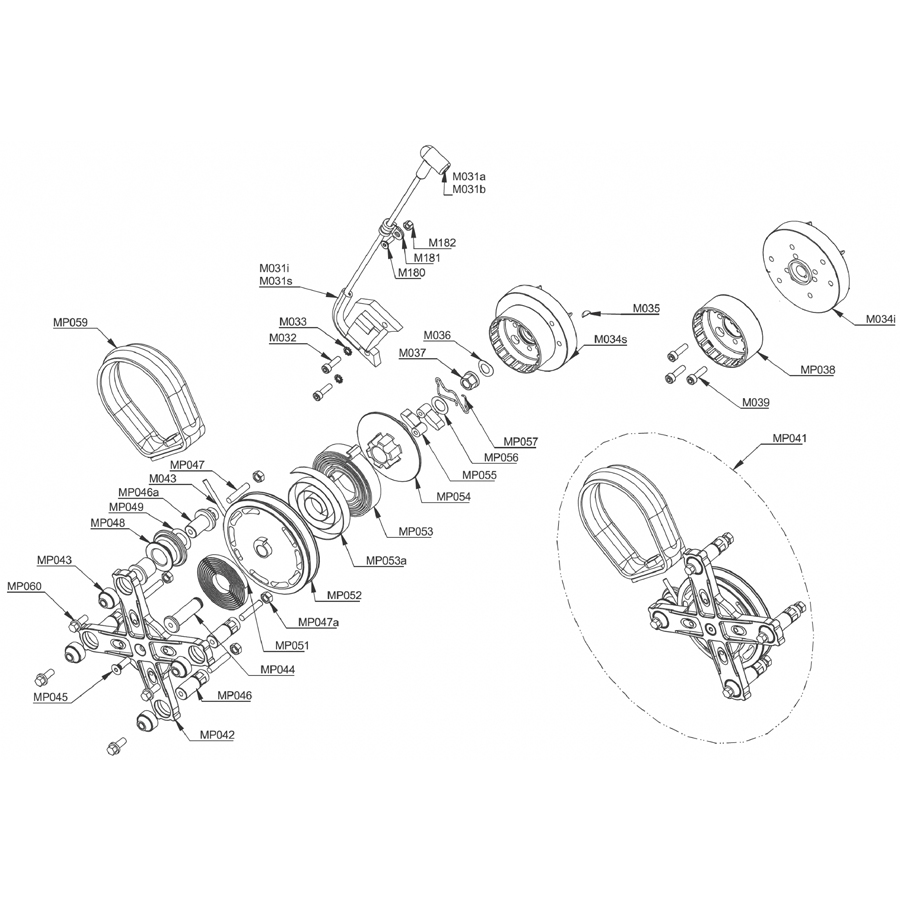

Moster Plus Parts List - Pull Start Group



M031s Electronic ignition coil (Selettra) with spark-plug cap ( Qty Req 1)

M031i Electronic ignition coil (IDM) with spark-plug cap ( Qty Req 1)

M031a Spark-plug cap (Selettra) ( Qty Req 1)

M031b Spark-plug cap (IDM) ( Qty Req 1)

M180 Bolt 4 x 20mm Tsei DIN 7991 ( Qty Req 1)

M181 Pipe retaining clip 08/12 mm ( Qty Req 1)

M182 Nut with flange M4 DIN 6923 ( Qty Req 1)

M032 Bolt 5 x 20 mm Tcei DIN 912 ( Qty Req 2)

M033 Lock washer tooted Ø 5 mm DIN 6798A ( Qty Req 2)

M034s Flywheel SELETTRA with aluminum toothed pulley ( Qty Req 1)

M034i Flywheel (IDM) ( Qty Req 1)

MP038 Aluminum toothed pulley for flywheel IDM ( Qty Req 1)

M039 Bolt 5 x 16 mm Tcei DIN 912 ( Qty Req 3)

M035 Key-hole tang 3 x 3,7 mm DIN 6888 ( Qty Req 1)

M036 Ondulated spring washer Ø 10.5 x 18.0 mm DIN 137B ( Qty Req 1)

M037 Nut with flange 10 x 1.25 mm ( Qty Req 1)

MP041 Pull starter complete ( Qty Req 1)

MP042 Starter structure with anti vibration mount assembled ( Qty Req 1)

MP043 Anti vibration mount for starter 20 x 14 mm ( Qty Req 4)

MP044 Starter central pin ( Qty Req 1)

MP045 Bolt 6 x 20 mm Tsei DIN 7991 ( Qty Req 1)

MP046 Aluminum spacer, orange ( Qty Req 3)

MP046a Aluminum spacer with pulley seat, orange ( Qty Req 1)

MP047 Stud inox 6 x 30 mm DIN 913 ( Qty Req 4)

MP047a Lock nut 6MA DIN 980 ( Qty Req 4)

MP048 Rope passing aluminum pulley, black ( Qty Req 1)

MP049 Set of 2 shim washer 14 x 24 mm (0,3-0,5 mm) DIN 988PS ( Qty Req 1)

MP051 Recoil spring ( Qty Req 1)

MP052 Plastic pulley ( Qty Req 1)

MP053 Easy start spring ( Qty Req 1)

MP053a Strapping band ( Qty Req 1)

MP054 Plastic hook housing ( Qty Req 1)

MP055 Plastic hook ( Qty Req 2)

MP056 Set of 5 shim washer 12 x 18mm (0,2-0,3-0,5mm) DIN 988PS ( Qty Req 1)

MP057 Elastic ring for hooks ( Qty Req 1)

M043 Starter rope 2,20 meters ( Qty Req 1)

MP059 Starter handle ( Qty Req 1)

MP052k Kit pulley easy start
