Miniplane Paramotor, Mini-Plane Powered Paraglider, Top 80 Motor - the lightest paramotor available! www.Miniplane-USA.com

Miniplane PSF

In 1996 Per il Volo invented and produced the first harness attachment system to feature high hook-in points with low J-bar distance bars, called the PSF system.

It is today appreciated as the industry standard and most often copied by other manufacturers world wide.

Available in either the M (115cm prop) or L (125cm prop). An XL (135cm prop) is available for competition use.

Price: $4950

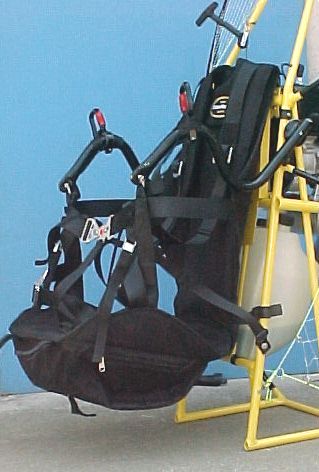

Miniplane ABM

The new 2007 Miniplane frame allows the use of the proven PSF system or as an option the new revolutionary ABM system with pivot arms using a mid attachment point, in order to keep an excellent degree of stability, and at the same time allows for "active" pilot weight shift.

Experts that have test flown this system agree that it allows great weight shift ability without the instability found on previous systems by other manufacturers. Read a Review by FootFlyer and Backyard Flight.

Price: $5550

		115	125
propeller	cm	2 blades 115	2 blades 125
empty weight	Kg	18,5kg (43 lbs) harness included
engine
carburetor		Diaphragm Walbro, or basin Dell'Orto
dimensions	cm cm	125 x 125 x 75	135 x 135 x 75
dimensions	cm cm	reducible to h 75 x 40 x 40	reducible to h 80 x 40 x 40
static thrust	Kg	47	52
noise level	dB
climb rate **	m/s	2,2	2,5
consumption in level flight **	l / h	2	< 2
max. pilot weight	Kg	90	110
frame		aluminum ergal and fiberglass
fuel capacity	l	11,5	11,5
Range		3 Hours	more than 4 hours
** with 75 kg pilot and performance glider

MiniplaneUSA

Info@Miniplane-USA.com

Miniplane PSF

Price: $4950

Miniplane ABM

Price: $5550

115

125


Miniplane PSF In 1996 Per il Volo invented and produced the first harness attachment system to feature high hook-in points with low J-bar distance bars, called the PSF system. It is today appreciated as the industry standard and most often copied by other manufacturers world wide. Available in either the M (115cm prop) or L (125cm prop). An XL (135cm prop) is available for competition use. Price: $4950	Miniplane ABM The new 2007 Miniplane frame allows the use of the proven PSF system or as an option the new revolutionary ABM system with pivot arms using a mid attachment point, in order to keep an excellent degree of stability, and at the same time allows for "active" pilot weight shift. Experts that have test flown this system agree that it allows great weight shift ability without the instability found on previous systems by other manufacturers. Read a Review by FootFlyer and Backyard Flight. Price: $5550
Pre-Owned Miniplane Paramotors
