Miniplane Frame Parts
Frame Styles - Classic and Cateye "New" |

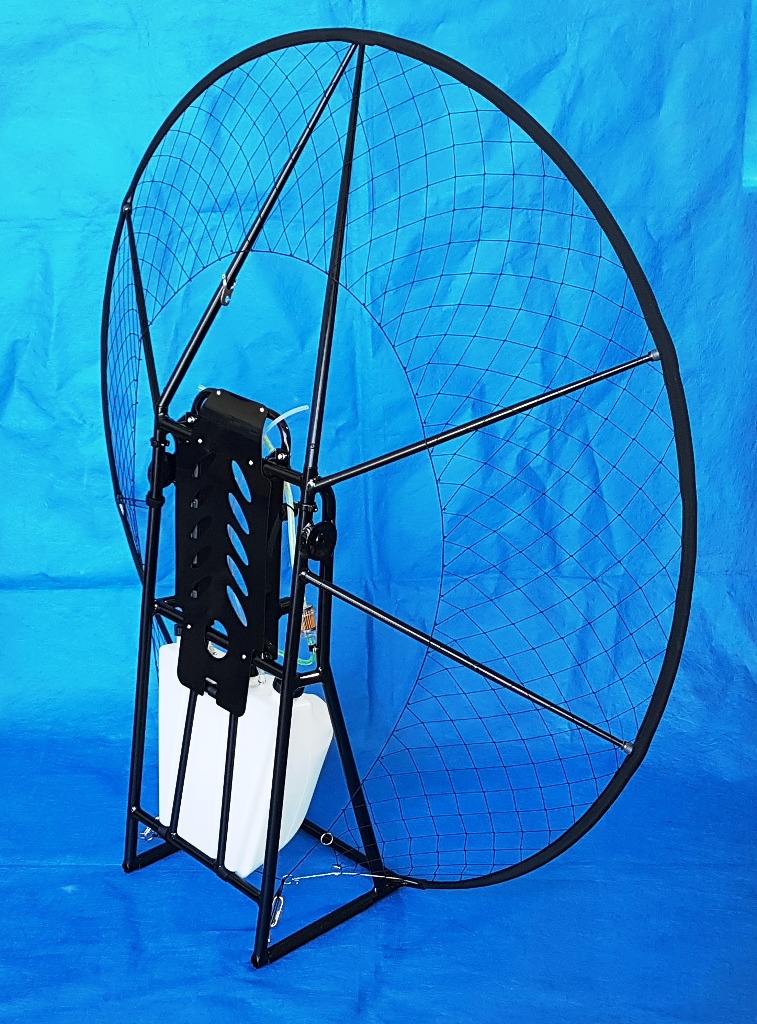

ABM Rigid 4-Part Cateye Frame/Cage Set, 140 or 150 TGR4 |
|
- Painted Miniplane ABM New Cateye Rigid Frame/Cage Assembly
- For Top 80 Engine only
- Sizes: 140 for 130cm propeller, 150 for 140cm propeller
- Color is black, other colors available on request (see samples)
- 140: Special order - 2-4 weeks
- Does not include ABM Side Arms, Harness, Tank, Starter Inox Clip, Throttle, etc.
- Pictures & Comparison
- Price: $2140
|

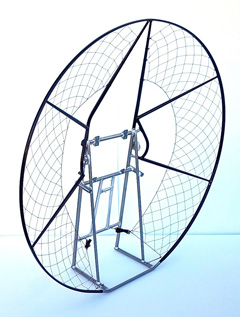

ABM Rigid 2-Part Classic Frame/Cage Set, 140cm TGR2-X |
|
- Painted Miniplane ABM Rigid Classic Frame/Cage Set
- Available for Top 80 or Other Engine
- Diameter 140cm for 130cm propeller
- Colors available: (see samples)
- Special order - 2-4 weeks
- Does not include ABM Side Arms, Harness, Tank, Starter Inox Clip, Throttle, etc.
- Pictures & Comparison
- Price: $2140
|
ABM Complete Frame/Cage Set, Large (125) TA M-L |
|
- Painted Miniplane ABM Classic Frame/Cage Assembly
- Size Large 125
- Colors available: (see samples)
- Does not include Tank, Harness, Side Arms, Starter Inox Clip, Throttle, etc.
- Special order (may take 1-2 months)
- Price: $2050
|
PSF Complete Frame/Cage Set, Large (125) T L |
|
- Painted Miniplane PSF Classic Frame/Cage Assembly
- Size Large 125
- Includes PSF Side Arms T1D
- Colors available: (see samples)
- Does not include Harness, Tank, Starter Inox Clip, Throttle, etc.
- Special order (may take 1-2 months)
- Price: $1950
|
ABM Complete Flex Frame/Cage/Harness/Tank for other Motors |
|
- Painted Miniplane ABM Classic Frame/Cage/Harness/Tank
- Everything but the engine!
- Available for Minari (shown), Moster, Black Devil & Polini THOR engines
- Size Large 125
- Includes ABM Side Arms T1DFR
- Includes Harness, Tank & Throttle
- Does NOT include Motor
- Colors available: (see samples)
- Price: $4100
|

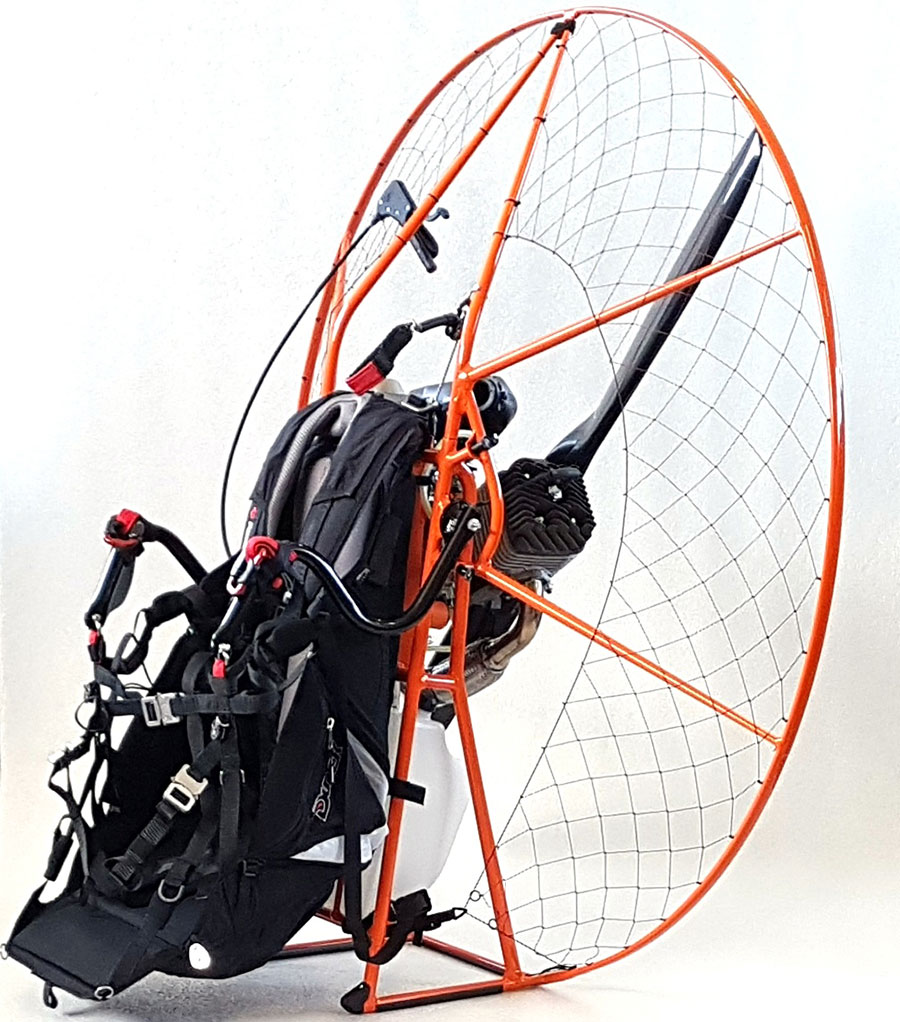

ABM Complete Rigid Frame/Cage/Harness/Tank for other Motors |
|
- Painted Miniplane ABM Rigid Frame/Cage/Harness/Tank
- Everything but the engine!
- Available for Minari, Moster, Black Devil (shown) & Polini THOR engines
- Size Large 125
- Includes ABM Side Arms T1DFR
- Includes Harness, Tank & Throttle
- Does NOT include Motor
- Colors available: (see samples)
- Price: $4750
|

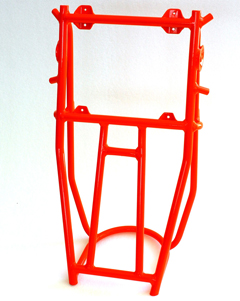

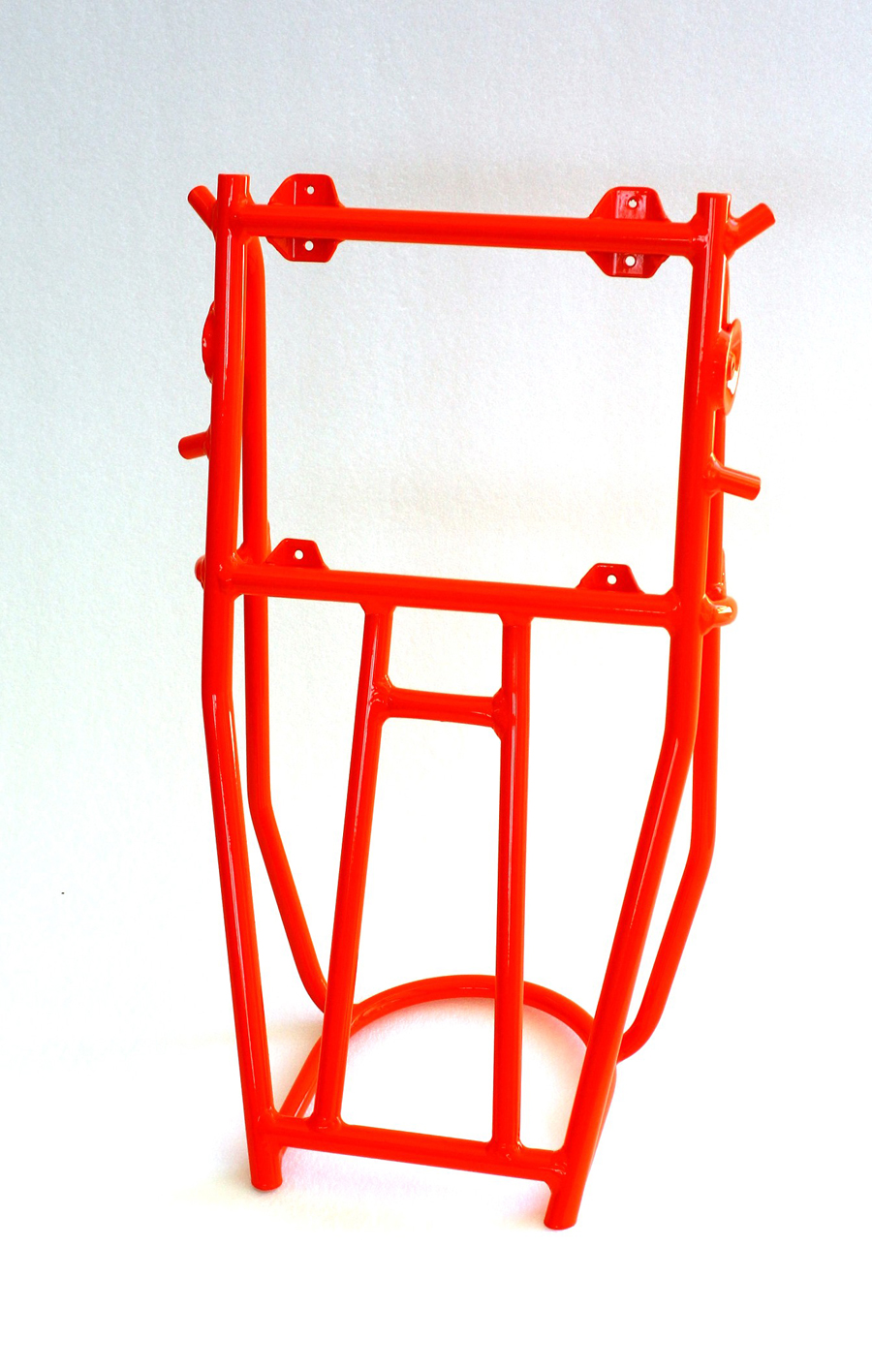

ABM Large Frame, "New" Cateye Style T1-2016 |
|
- Painted Miniplane ABM "New" Cateye Frame
- Colors available (samples):
Black, Silver-Grey, Red, Metal Red, Metal Blue, Orange, Yellow, White
- Size is the same for each Miniplane size
- Please note: Backplate T/B, Foot Frame T/C, Sticks for Foot Frame T3F and Frame Extension T/A are not included
- Price: $900
|

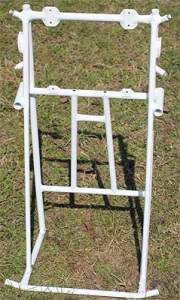

PSF/ABM Large Frame, Classic Style T1L |
|
- Painted Miniplane PSF/ABM Classic Frame
- Size Large 125
- XL size is availlable
- Colors available (samples):
Black
Silver-Grey
Red
Metal Red
- Metal Blue
Orange
Yellow
White
- T1L
- Price: $900
|

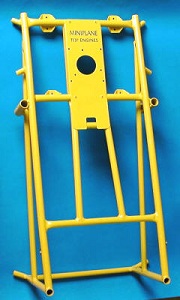

PSF Medium (115) Classic Frame T1M |
|
- Painted Miniplane PSF only Frame
- Size Medium 115
- Colors available (samples):
- Black
Silver-Grey
Red
Metal Red
- Metal Blue
Orange
Yellow
White
- T1M
- Price: $900
|

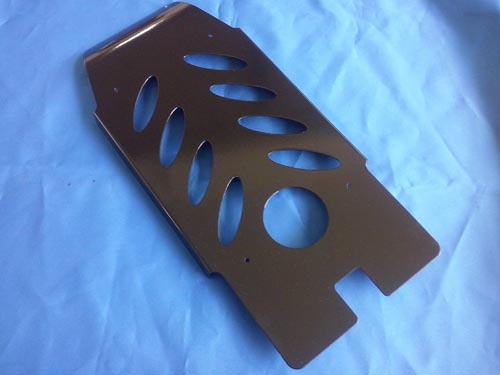

Frame Backplate Top 80 T/B |
|
- Backplate for the Frame.
- Top 80 Style
- 4 Vent Holes 16" Tall
- 5 Vent Holes 19" Tall
- Price: $34
|
Frame Backplate Other Engines T/B (flat) |
|
- Backplate for the Classic Frame
- Flat Style for Other Engines
- 19" Tall
- Price: $34
|

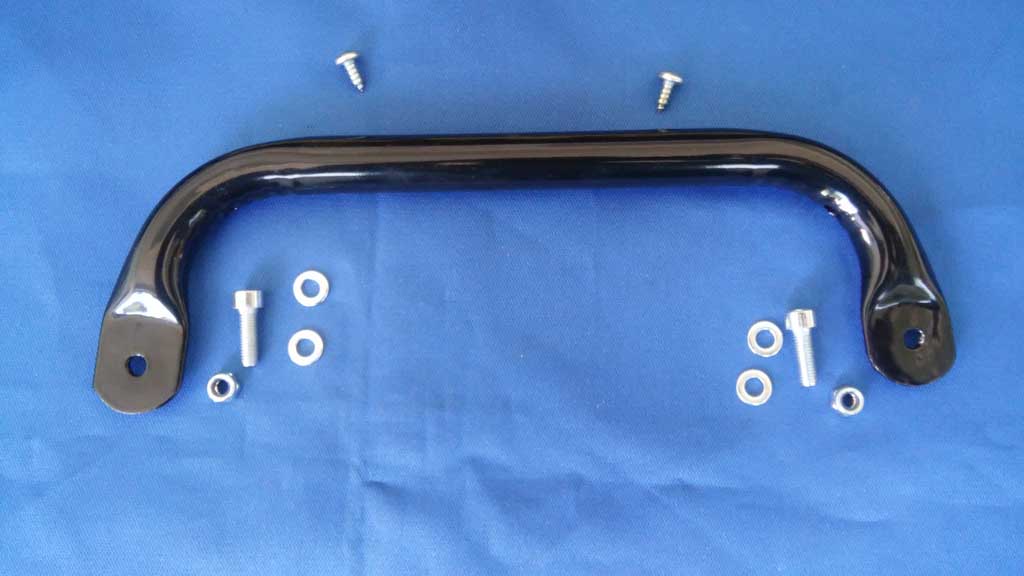

Backplate Arc T/A1 |
|
- Upper extension for the 2007 frame
- Includes Screws & Nuts
- Price: $36
|
|
|
- Pair includes Bolts, etc.
- 10mm or 20mm sizes
- Widens the ABM arms for larger pilots by 10 or 20mm
- Price: $29.00
|
Lower Frame Connector, New Frame |
|
- Lower Connector
- Fits New Frame
- Price: $25.00
|

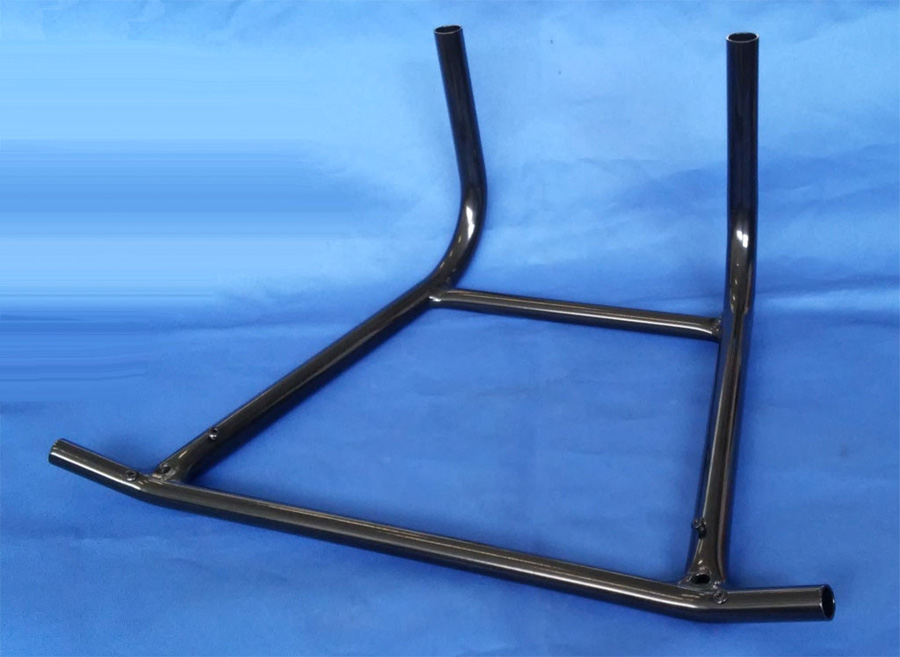

Lower Frame Section - Foot Frame T/C |
|
- Lower Frame Section
- Fits New "Cateye" Frame 2016
- Black color only, size L
- Colors by special order
- M or XL by special order
- Price: $95.00
|
Upper Sticks Assembly T2A |
|
- T2A
- Upper Sticks for Miniplane cage.
- Includes Upper Cage Fitting and Upper Stick Connectors.
- Does not include Pulley Block Mount.
- Information about cage sizes HERE
- Black color only
- Please Choose Size!
- Price: $126.00
|
Cage Side Stick T3 |
3 Sizes (Please Choose):
M for 115cm Frame
(approx 44cm or 17 5/16")
L for 125cm Frame
(48cm or 19")
L1 for 125cm Frame
(51cm or 20")
Measure the BLACK portion.
|
- Miniplane cage Side Stick T3
- Threaded base with Conical design
- Tap size: 10 x 1.5mm (if you ever need to clean out frame)
- Information about cage sizes HERE
- Moster and Classic Frame use the L size
- New Frame use L1 size
- Price: $59.00 each
|
Foot Frame Stick for New Frame T3F |
M, L & XL Sizes
|
- Miniplane Foot Frame Sticks T3F
- For use with the Foot Frame on Cateye 2016 Frame
- Includes Foot Screw 4x16
- Sold EACH, order 2 for a pair
- NOT the same as Cage Side Stick
- Price: $59.00 each
|
Kit: Screw & Washer for Foot Frame T/C1 |
|
- Kit: Screws & Washers
- Joins T/C and T3F
- 2 Spacers & 2 Screws M4x16
- Price: $8.00
|

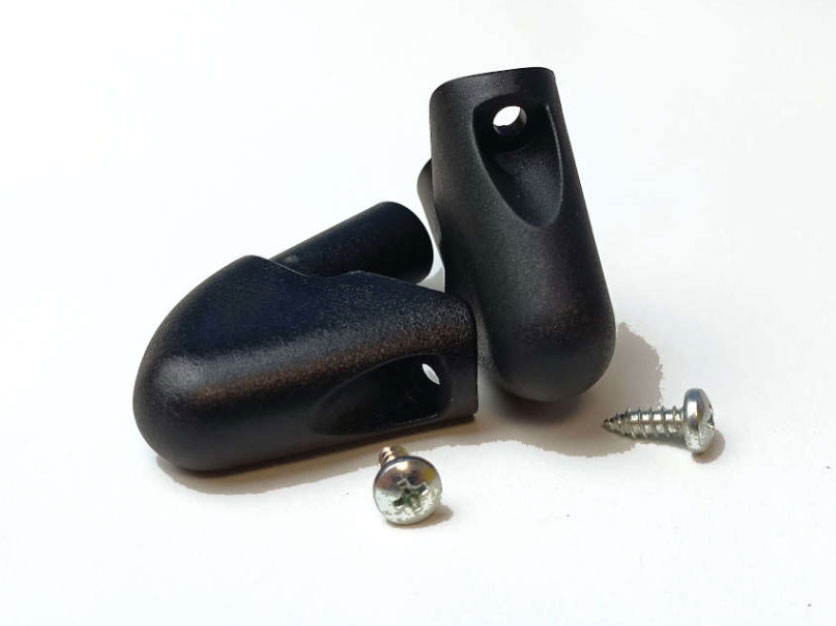

Frame Feet T1F |
|
- Pair
- Black or Red
- Price: $15.00
|
Frame Clips (new style - 4 pieces) T1CN |
|
- 2 pieces for 16 mm
- 2 pieces for 20mm
- Price: $20.00
|
Cage Slider T4S |
|
- Cage Slider to facilitate Forward Launches
- Price: $8.00 each
|
Frame Base Slider Set TPP |
|
- Sliders for Base of Frame
- Kit complete
- Please choose frame style
- Price: $12.00 each
|
Miniplane Cage Reinforcement T2-RG |
|
- Transverse Cage Reinforcement
- Strengthens the upper cage
- Excellent for Forward Launches
- Price: $65
Available for Large Size Classic or New Frame.
|
Miniplane Cage Net Hook, pair |
|
- Two hooks that hold the lower Netting rings
- Sold as a pair
- Includes two rivets to attach
- Price: $8.00 pair
|

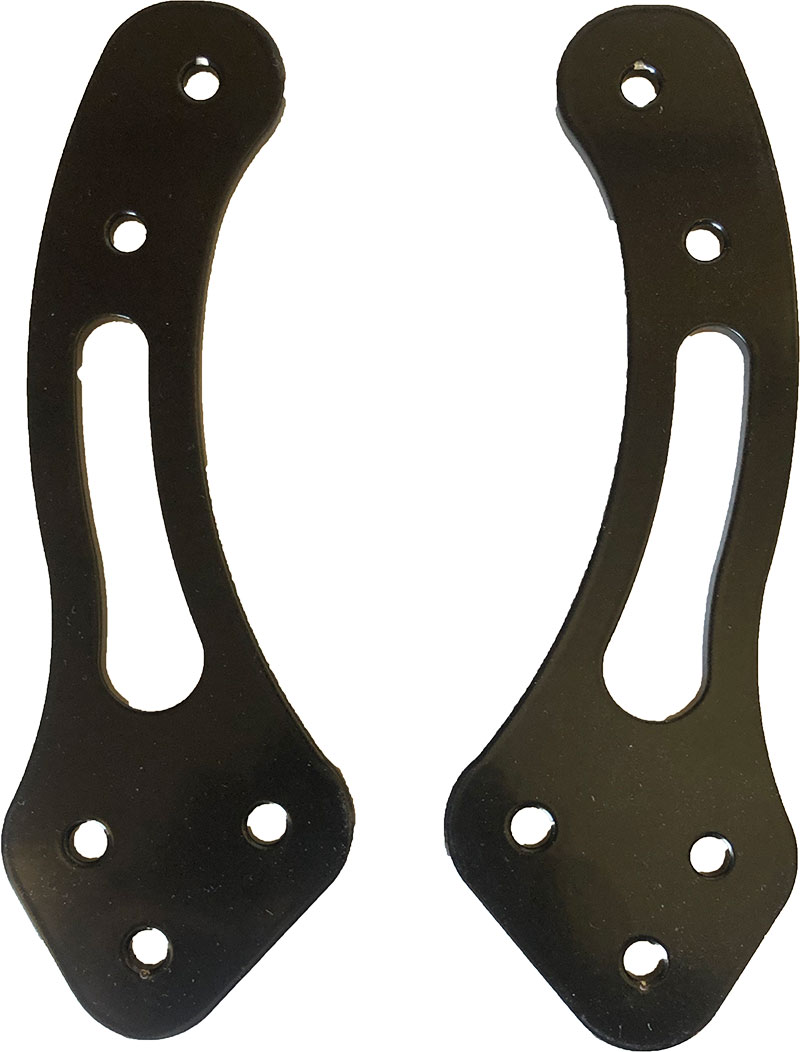

Motor Brackets - Top 80/Atom 80, pair |
|
- Adapter Brackets
- Top 80 to Atom 80
- Sold as a pair
- Bolts & Nuts NOT included
- Price: $164.00 pair
|
