Vittorazi Moster Plus Parts - Exhaust Group

Roll over top images to display them below.
Click to go to that group's detail page.

Image 0
Thermal Group
Image 1
Starter Group
Image 2
Redrive & Carb Group
Image 3
Exhaust Group

Online ordering coming soon!

For now, compile list of part numbers needed then email us at info@miniplane-usa.com

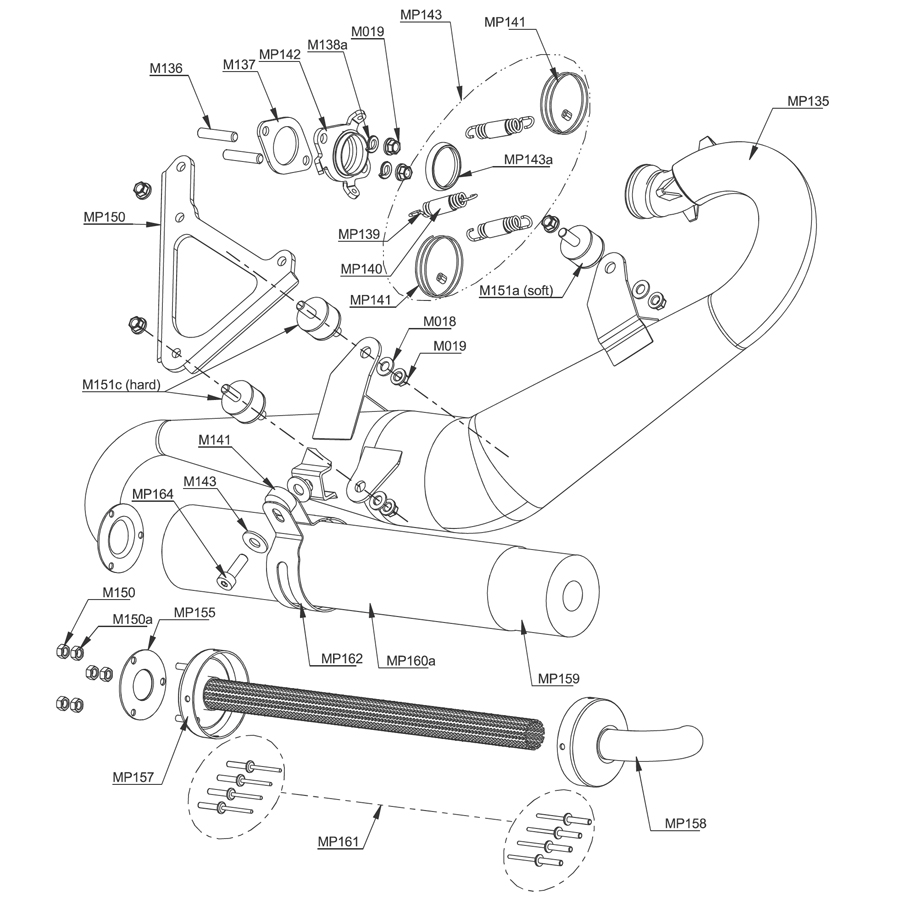

Moster Plus Parts List - Exhaust Group



MP135 Complete muffler black, without silencer and plate

M136 Exhaust stud Ø 8 x 38 mm ( Qty Req 2)

M137 Exhaust gasket cylinder ( Qty Req 1)

M019 Copper lock nut high temperature 8 x 1,25 mm ( Qty Req 2)

M138a Washer grower Ø 8 mm DIN 127B ( Qty Req 2)

M139 Exhaust spring ( Qty Req 3)

MP140 Heat shrinkable tubing ( Qty Req 3)

MP141 Set of 2 security cable 26/37cm with aluminum clamps ( Qty Req 1)

MP142 Exhaust flange ( Qty Req 1)

MP143 Kit bronze bushing with springs and safety cable ( Qty Req 1)

MP143a Bronze bushing ( Qty Req 1)

MP150 Exhaust support plate ( Qty Req 1)

MP150a Exhaust support plate (*) ( Qty Req 1)

M151a Anti vibration mount 30 x 20 mm soft (left) 14/20mm ( Qty Req 1)

M151c Anti vibration mount 30 x 20 mm hard (right) 14/14mm ( Qty Req 2)

M019 Copper lock nut high temperature 8 x 1,25 mm ( Qty Req 6)

M018 Washer Ø 8 x 16 mm DIN 125A ( Qty Req 3)

MP155 Silencer gasket ( Qty Req 1)

M150 Lock nut 6MA DIN 980 ( Qty Req 3)

M150a Nut 6MA DIN 934 ( Qty Req 3)

MP157 Internal silencer structure ( Qty Req 1)

MP158 Silencer cap ( Qty Req 1)

MP159 Noise absorbent material ( Qty Req 1)

MP160a Carbon fiber pipe silencer 350 mm ( Qty Req 1)

MP161 Inox rivet Ø 5 mm ( Qty Req 8)

MP162 Silencer steel bracket for carbon pipe ( Qty Req 1)

MP162a Silencer steel bracket for aluminum pipe (*) ( Qty Req 1)

M141 Rubber spacer ( Qty Req 1)

MP164 Bolt 8 x 20 mm Tcei DIN 912 ( Qty Req 1)

M143 Washer Ø 8 est. 24 mm DIN 9021 ( Qty Req 2)

MP166 Complete muffler black, assembled with silencer and plate ( Qty Req 1)

MP167 Complete silencer 350mm, assembled ( Qty Req 1)
