Miniplane Paramotors




Miniplane Minari Paramotor:




Miniplane Weight Shift
NEW - the Miniplane
Minari Paramotor!



Minari Engine

The MP Minari is powered
by the awesome Minari!



Miniplane Paramotor
Info@Miniplane-USA.com
Please note: We sell to USA only!

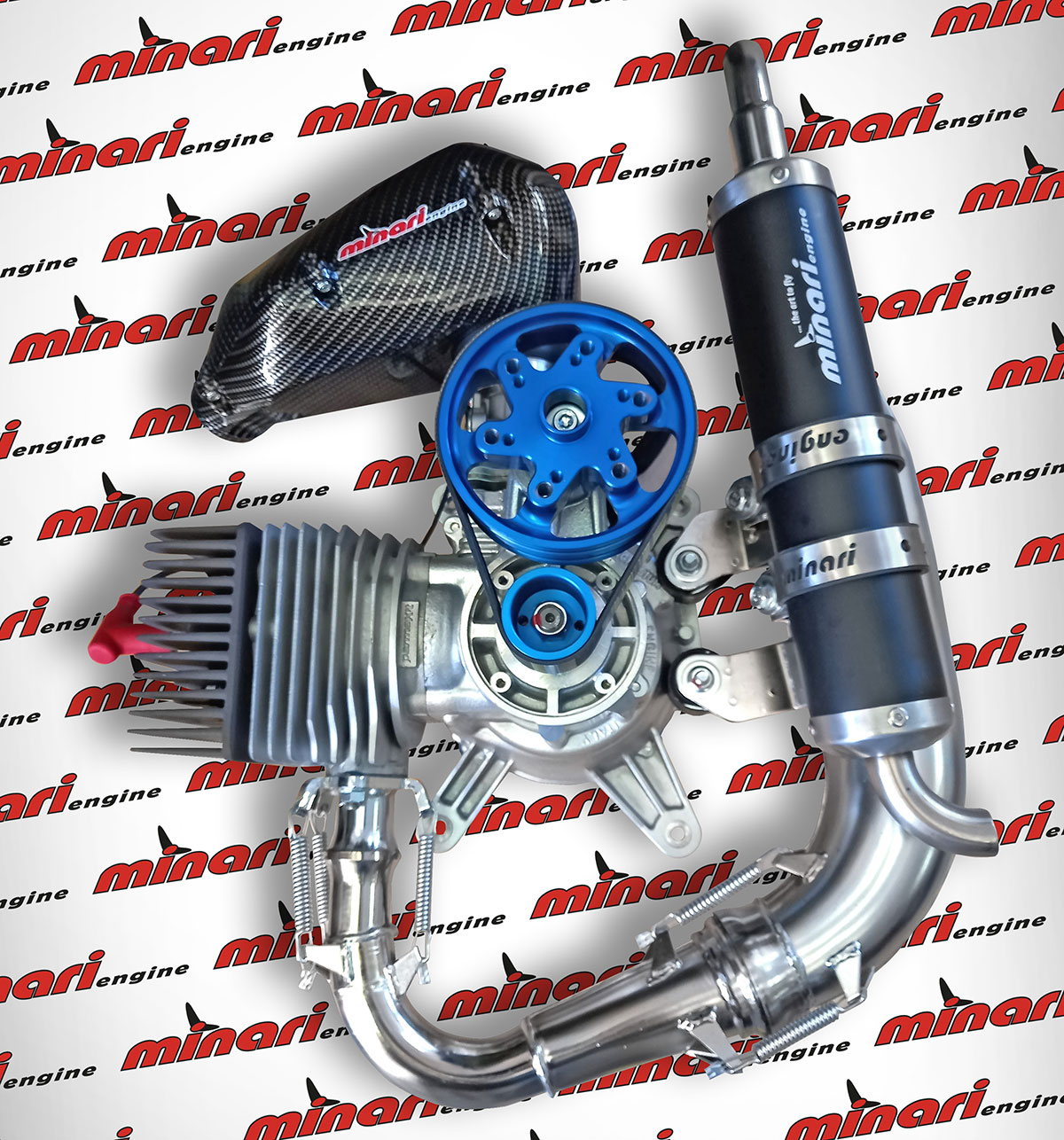

Miniplane Paramotor Engine

Minari Engine

TECHNICAL DETAILS: 180cc F1-M9
ENGINE: Single Cylinder 2T
MOTOR CARTER: Magnesium
CYLINDER: Alluminium, 6 transfer with nickel silicon plated
PISTON: 2 rings thickness 1,2mm steel chromed
COOLING: By air/natural
DIAMETRE and STROKE: 66x53
CUBIC CAPACITY: 181.23cc
COMPRESSION RATIO: 11:1
INTAKE: Reed Valve inside crankcase to 4 petal
CARBURETTOR: Walbro WB 37 C
MAX POWER: 27hp at 7700 rpm
IGNITION: Electronic to variable advance
STARTING: Manual
BELT DRIVE: Belt POLIV - 14 rim of pulley
REDUCTION: Pulley ratio 1/2.6
ENGINE SUPPORT: n°4 Anti-vibration
MOTOR FUEL: Premium gasoline + semi-syntetic oil 2,5%
COMPLETE ENGINE WEIGHT WITH MUFFLER: 14.05 Kg (Manual Starter)
COUNTER CLOCKWISE ROTATION: The front of the drive

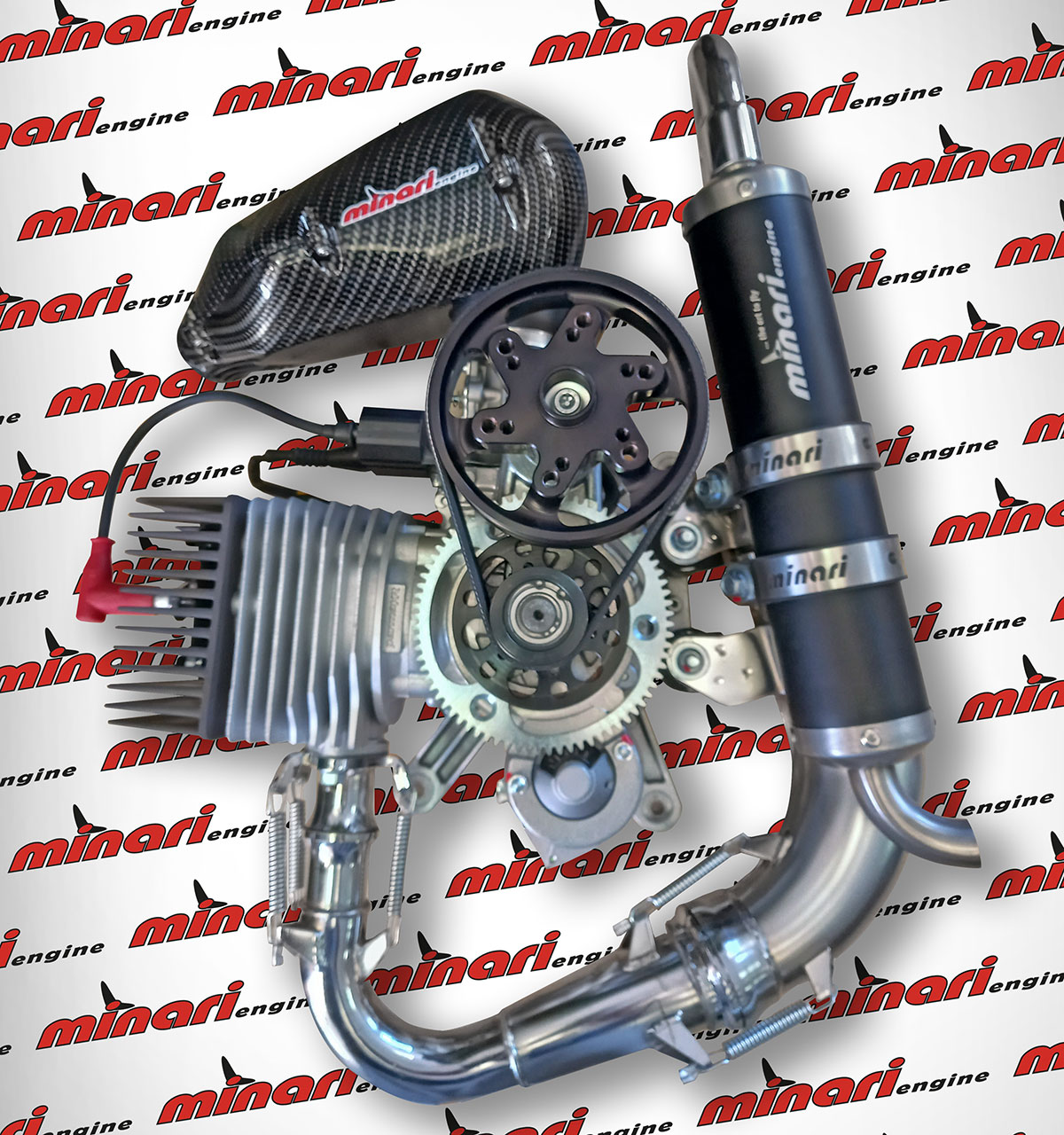

TECHNICAL DETAILS: 200cc F1-M9-CL

ENGINE: Single Cylinder 2 strokes
MOTOR CARTER: Magnesium
CYLINDER: Alluminium, 6 transfer with nickel silicon plated
PISTON: 2 rings thickness 1,2mm steel chromed
COOLING: By air/natural
DIAMETRE and STROKE: 66x56.8
CUBIC CAPACITY: 194.22cc
COMPRESSION RATIO: 11:1
INTAKE: Crankcase reed valve with 4 petals
CARBURETTOR: Walbro WB 37 C
MAX POWER: 29hp at 8000 rpm
IGNITION: Electronic with variable advance
STARTING: Manual
BELT DRIVE: Belt POLY-V
REDUCTION: Pulley ratio 1/2.76
ENGINE SUPPORT: 4-6 Silent Block
MOTOR FUEL: Premium gasoline + semi-syntetic oil 2,5%
COMPLETE ENGINE WEIGHT WITH MUFFLER: 14.50 Kg (Manual Starter)

Minari Parts
See the Minari Miniplane Paramotor HERE



Minari 180cc Engine only: F1 M9 - $2895




Minari 200cc Engine only: F1 M9CL - $3195








Now available with a Clutch!!!

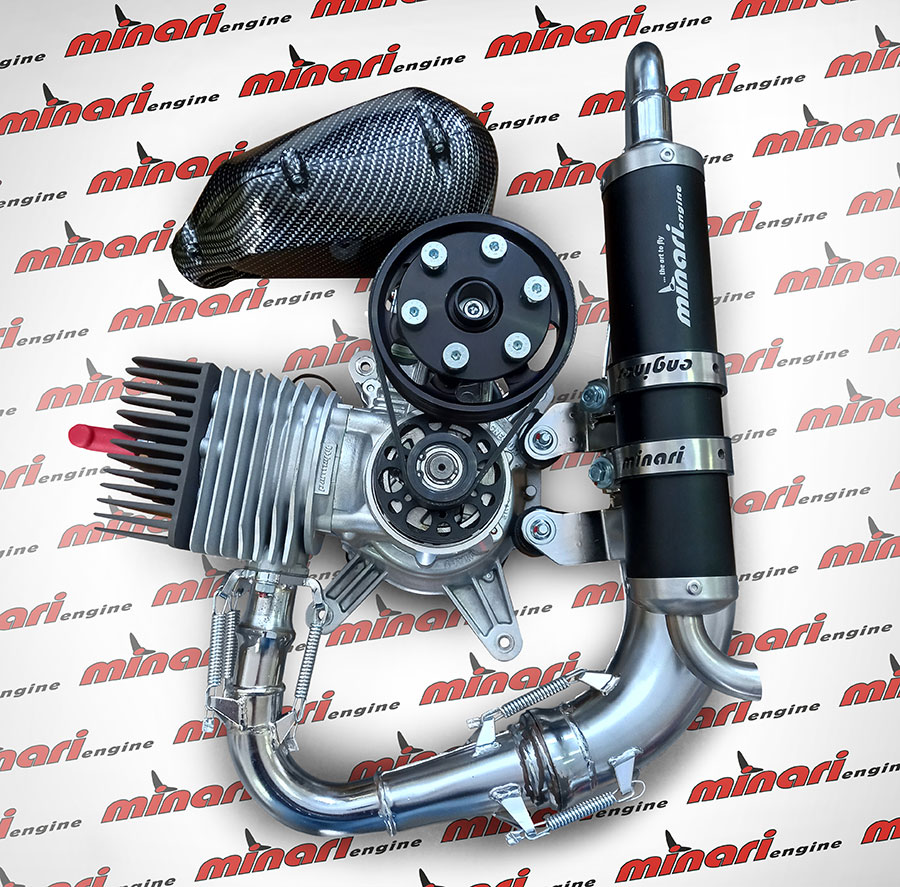

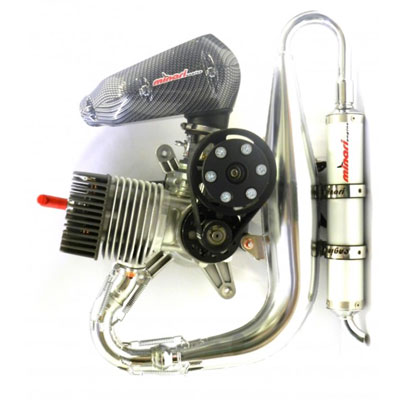

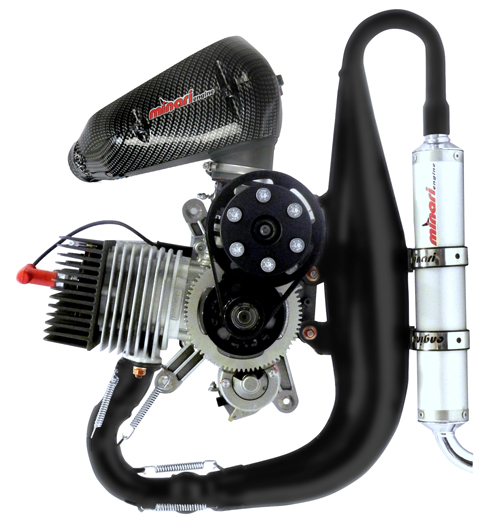

Minari Clutch Engine

Minari 180cc with Clutch - Engine only: F1 M9-F - $3295




Minari 200cc with Clutch - Engine only: F1 M9CL-F - $3595






New Clutch version video from Minari-Engines:
